iEASY Series

TM22 with ADF150F

Long-lasting battery ensures extended use

Replaceable cover lens with good sealing to effectively prevent light leak.
Shell made of high-impact resistance nylon material, ensuring both durability and lightweight design.

  • Hard hat compatible

    You can pair it with hard hats for extra head protection.

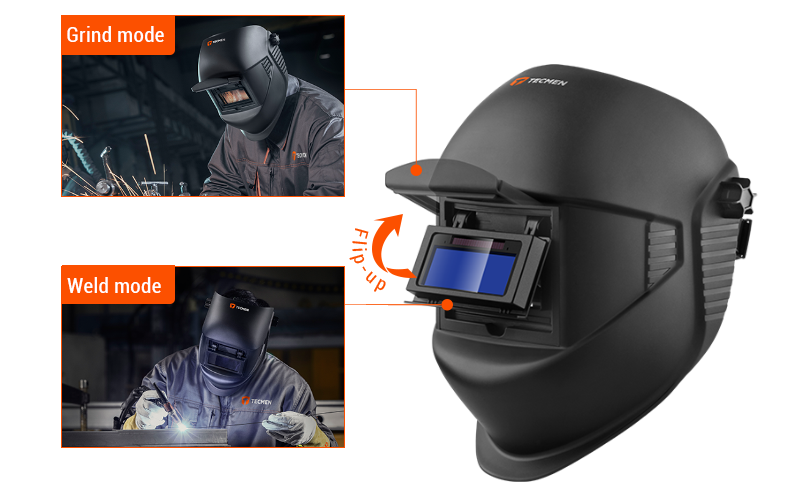

  • Flip-up

    You can lift the front cover for grinding job.
Request a quotation
Overview Specifications Contact Approvals Related products
Versatile and economical solution for every need.

Versatile and economical solution for every need.

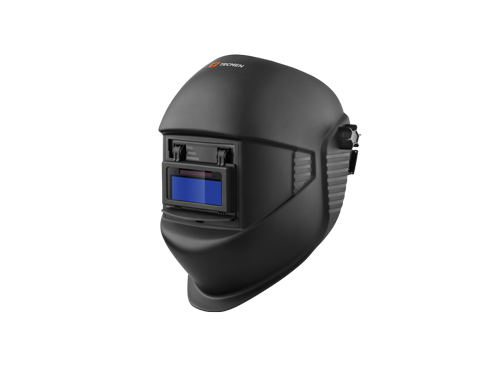

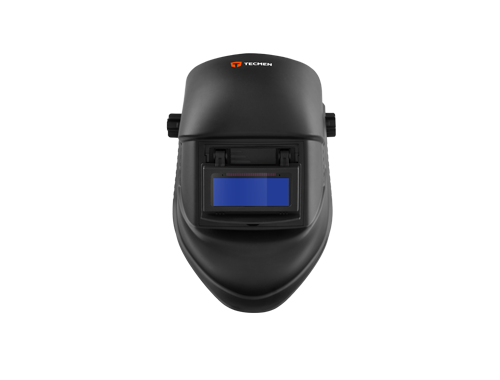

TM22 flip-up welding helmet

TM22 with ADF150F

Adjust all parameters on one single screen

Shade, sensitivity and delay all adjustable.

Key features

Powerful head insulation01

Block up to 30% of the radiated heat.

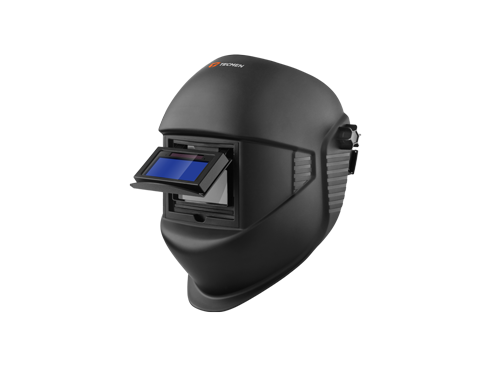

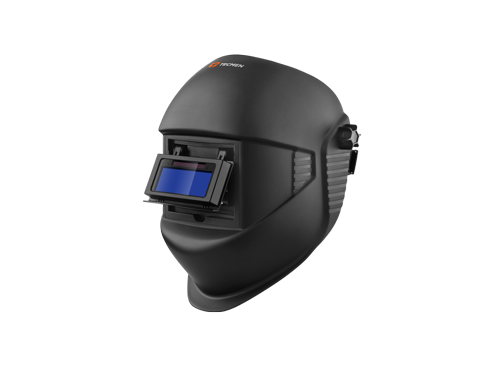

Easy switch with flip-up design02

Just flip the cover up when needed. No need to take off the entire helmet.

Auto-darkening filter03

1/4000s switch from light state 3.0 to DIN10/11. Automatic power on/off.

Lightweight and robust04

High-impact resistant nylon material, light but strong.

Specifications

More information about our products

Specifications

ADF Model

ADF150F

Optical class

1/1/1/2

Viewing area

92*35mm

Cartridge size

108*50.8*5mm

Arc sensor

2

Light state

DIN3.0

Dark state

DIN10 / DIN11

Power on/off

Automatic on/off

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with a built-in rechargeable battery

Switching time

1/4000s from light to dark

Delay (dark to light)

0.25-0.45s

Low amperage TIG rated

≥35 amps (DC); ≥35 amps (AC)

Operating temp.

-5℃ to 55℃

Storing temp.

-20℃ to 70℃

Mask material

Nylon
