TM25 with ADF740G-Products-TECMEN

Full protection with exceptional value.

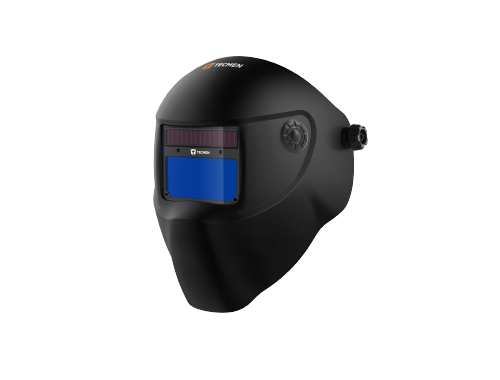

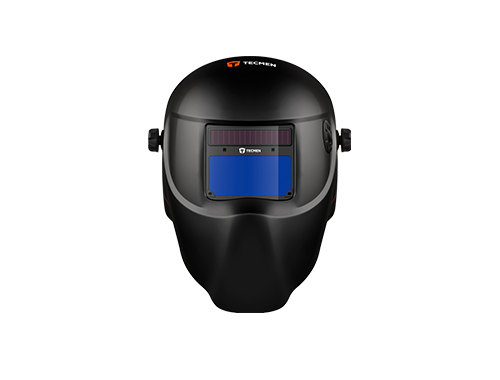

TM25 auto-darkening welding helmet

TM25 with ADF740G

Flexible and high-performance

Shade, sensitivity and delay all adjustable, plus the DARK mode for challenging work environments.

Key features

Independent arc sensors01

Come with 4 built-in arc sensors that can work independently. The arc sensors focus on the welding arcs without any interference from surroundings. Applicable under direct sunlight environment.

The DARK Mode02

If you encounter demanding welding environments where arc detection is a challenge, consider switching to the DARK mode where the ADF funtions as a shade glass.

Stepless shade adjustment03

Shading, delay and sensitivity can all be adjusted by the infinitely dial knob to meet different needs.

External grinding control04

Allows quick switch between welding and grinding modes without lifting your welding helmet or gloves.

Specifications

More information about our products

Specifications

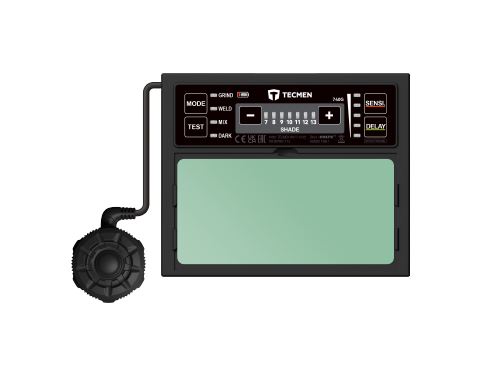

ADF Model

ADF740G

Optical class

1/1/1/2

Viewing area

96*46.5mm

Cartridge size

110*90*9mm

Arc sensor

Light state

DIN3.0

Dark state

DIN7-13

Shade control

Internal (LED and button control)

Power on/off

Automatic on/off

Sensitivity control

LED and button control

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 1 replaceable CR2450 lithium battery

Delay (dark to light)

0.05/0.1/0.3/0.6/1.0s, 5-level

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC)

Grinding

Yes

Battery capacity test

Yes

Low battery indicator

Yes

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon

Contact us for more information

* You are interested in:

TM25 with ADF740G

* What specific details are you seeking?

Asking for a sample product

Contacting our technical team

Quotation/price

Others

* Company name (Required)

* Your name (Required)

* Your email address (Required)

Please provide your request or question below

* TECMEN promises to collect this information from you only for contacting you and helping you better understand us. By sending, you agree to our Privacy Policy .

TM25 with ADF740G

Full protection with exceptional value.

Flexible and high-performance

Independent arc sensors01

The DARK Mode02

Stepless shade adjustment03

External grinding control04

Specifications

Contact us for more information

Approvals

Related products

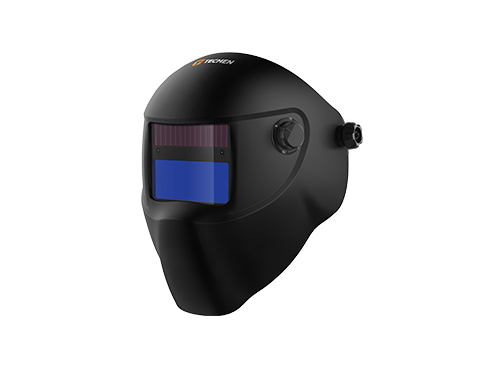

TM25 with ADF615S iEASY Series

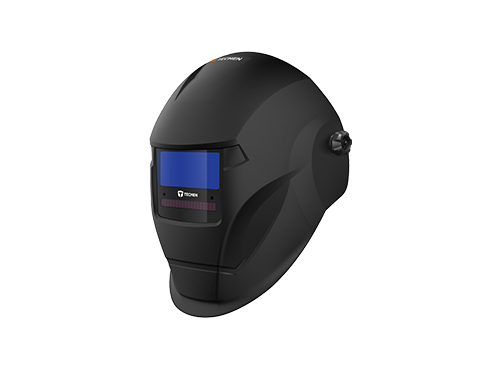

TM14 with ADF720S iWELD Series
