900 with 950-G-Products-TECMEN

Overview Specifications Contact Approvals Related products

Expand your welding horizon.

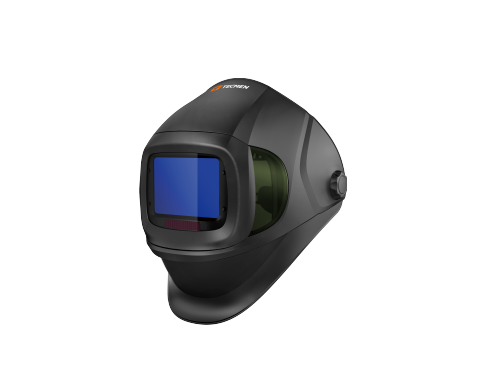

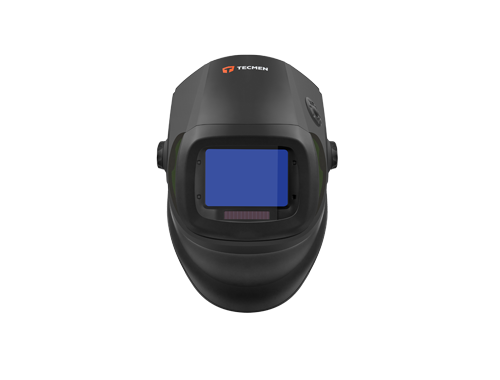

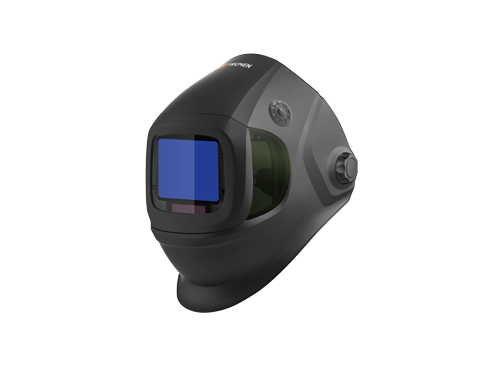

900 auto-darkening welding helmet

900 with 950-G

Side lenses and digital display

Features maximum field of view and easy observation of the surroundings.

Key features

Ultra-wide field of view01

107x75 mm field of view, providing an expansive and clear perspective of your work environment.

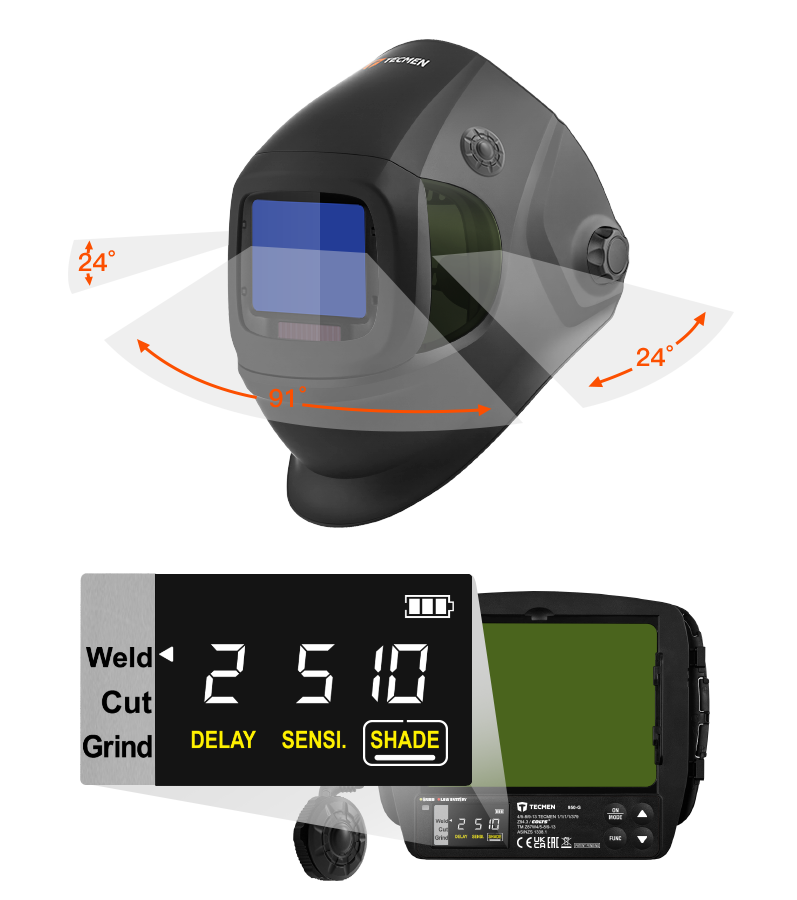

Side lenses02

Shade 5 side lenses on both sides, maximizing the welder's field of view. Enhance surrounding vision, minimize workplace hazard.

Digital display03

The smart digital backlit screen ensures clear and accurate visibility of your welding settings, even in low-light or dark environments.

External grinding control04

Allows for quick switch between welding and grinding modes without lifting your welding helmet or gloves.

Specifications

More information about our products

Specifications

ADF Model

950-G

Optical class

1/1/1/1

Viewing area

107*75mm

Cartridge size

156*123*33mm

Arc sensor

Light state

DIN4.0

Dark state

DIN5-8/9-13

Shade control

Internal (digital display control)

Power on/off

Automatic on/off

Sensitivity control

Digital display control

UV/IR protection

Up to DIN 16 at all times

Power supply

Solar cell with 2 replaceable CR2450 lithium battery

Delay (dark to light)

0.1-1.0s adjustable by digital display control

Low amperage TIG rated

≥2 amps (DC); ≥2 amps (AC)

Grinding

Yes

Low battery indicator

Digital display

Operating temp.

-10℃ to 55℃

Storing temp.

-20℃ to 70℃

Helmet material

High impact resistant nylon

Contact us for more information

* You are interested in:

900 with 950-G

* What specific details are you seeking?

Asking for a sample product

Contacting our technical team

Quotation/price

Others

* Company name (Required)

* Your name (Required)

* Your email address (Required)

Please provide your request or question below

* TECMEN promises to collect this information from you only for contacting you and helping you better understand us. By sending, you agree to our Privacy Policy .

900 with 950-G

Expand your welding horizon.

Side lenses and digital display

Ultra-wide field of view01

Side lenses02

Digital display03

External grinding control04

Specifications

Contact us for more information

Approvals

Related products

900 with 950-D iEXP Series

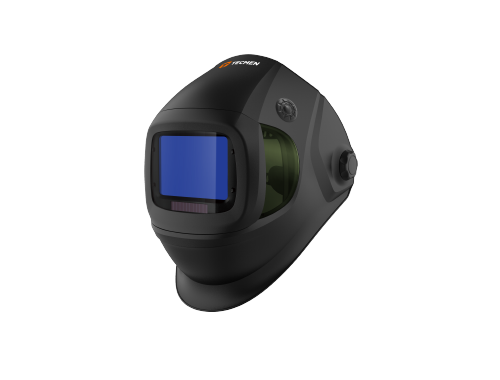

900 with 950D-G iEXP Series
